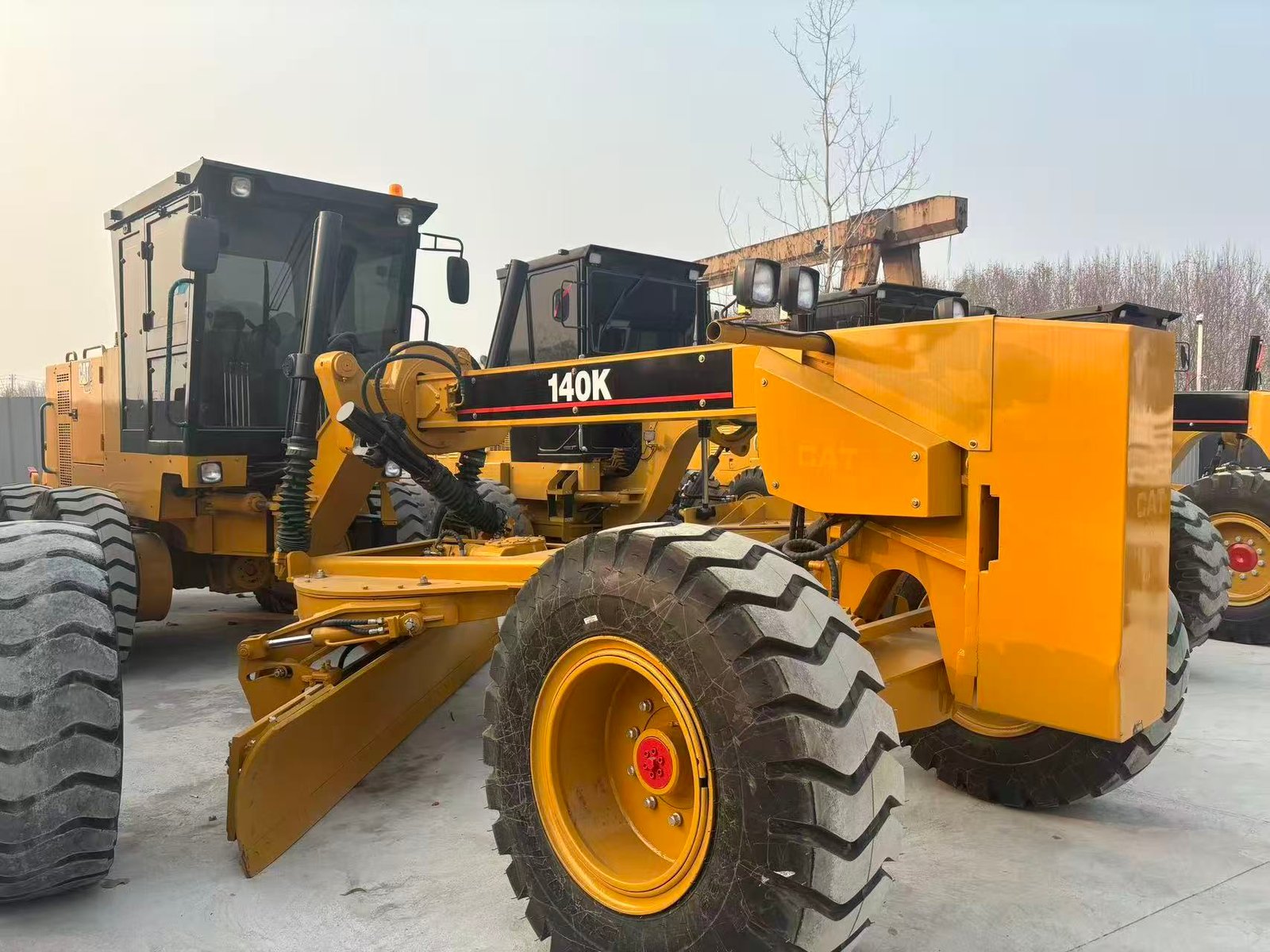

CAT 140 Motor Grader

Used CAT 140 Motor Grader

Used Equipment Condition Report: Clean and Tidy

Basic Information

Product Model: CAT 140 Motor Grader

Year of Production: 2024

Working Hours: 850 hours

Condition: Excellent, almost brand new

Previous Owner: Only one owner, used only for light-duty construction projects

Application Areas

Road construction, road maintenance, site preparation, fine grading, earthmoving, slope shaping, municipal engineering, infrastructure construction, mining auxiliary operations, landscaping

Maintenance Status

Maintenance: Regular maintenance, no fault records

Storage: Indoor storage, well maintained

Functionality: Fully functional, ready to use, maintenance-free





Get A Quote
Contact Us

Shares:

  • Description

CAT 140 Motor Grader Technical Specifications

Category Specification
Engine
Model Cat C7.1 AcertCat
Emissions EPA Tier 4 Final / EU Stage VCat
Net Power (ISO 9249) 174 kW (248 hp) @ 2200 rpmCat
Displacement 7.01 L (427.8 cu in)Cat
Cylinders 6, In-line, 4-stroke, turbocharged, air-to-air aftercooled
Bore × Stroke 105 mm × 135 mm (4.1 in × 5.3 in)
Max Torque 996 N·m (735 lb-ft) @ 1000 rpmCat
Performance
Forward Speeds 8F – 0 to 44.3 km/h (0 to 27.5 mph)
Reverse Speeds 6R – 0 to 36.4 km/h (0 to 22.6 mph)
Dimensions & Weights
Operating Weight (Typical) 18,748 kg (41,332 lb)Cat
Length (overall) 9.36 m (30 ft 9 in)
Width (over tires) 2.59 m (8 ft 6 in)
Height (over cab) 3.48 m (11 ft 5 in)
Wheel Base 6.40 m (21 ft)
Ground Clearance 432 mm (17 in)
Blade (Moldboard)
Width 4.27 m (12 ft)Cat
Height 610 mm (24 in)H-CPC
Thickness 22 mm (0.87 in)H-CPC
Maximum Depth of Cut 711 mm (28 in)
Maximum Side Shift 686 mm (27 in)
Tilt Range 90° total (45° each side)
Circle Turn Angle 360° continuous
Tires Standard: 14.00R24 (Front & Rear)Cat
Fuel Tank Capacity 380 L (100.4 US gal)
Hydraulic System
System Pressure 24,100 kPa (3,500 psi)
Implement Pump Capacity 189 L/min (50 gpm)



CAT 140 Motor Grader– Product Description

The CAT 140 Grader is a highly reliable and efficient motor grader designed for road construction, maintenance, site preparation and earthmoving projects. It features a powerful engine, stable performance, precise control and excellent maneuverability, making it suitable for various working conditions in construction, mining and infrastructure projects.

Key Features

  • High-performance Engine
  • Precision Blade Control
  • Responsive Power-shift Transmission
  • Operator Comfort & Safety
  • Heavy-duty Durability
  • Easy Maintenance
  • Versatile Attachment Compatibility

Applications

It is widely used in road construction, site leveling, earthmoving, mining and municipal engineering.
