Tipper Truck Technical Specifications
Tipper Truck / Dump Truck
Technical Specifications
Maximum Rated Loading Capacity: 40 tons
Drive Type: 6×4
Engine Power: 430 horsepower
Emission Standard: Euro 5
Transmission: 12-speed manual
Tipper Body Length: 6.8 meters
Tipper Body Material: High-strength wear-resistant steel
Maximum Dumping Angle: 47 degrees
Hydraulic Lifting System: Imported Hyva cylinder
Tire Specification: 12.00R20
Driving Speed: 80 kilometers per hour
Overall Dimensions (Length × Width × Height): 8600×2500×3400 millimeters
Gross Weight: 49 tons
Counterweight: 8 tons
Fuel Tank Capacity: 400 liters
Tipper Truck Product Description
Tipper Truck / Dump Truck
Product Description

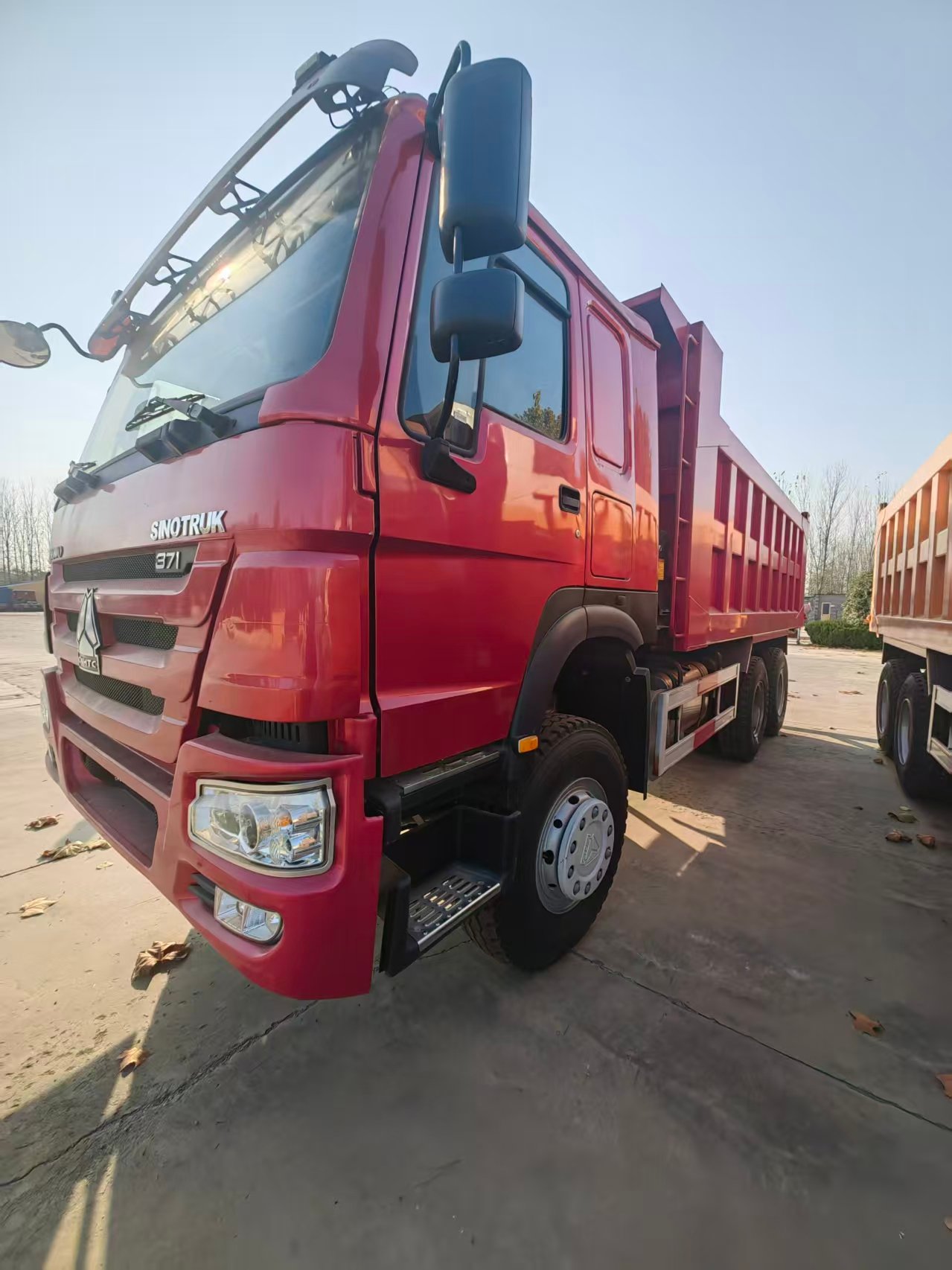

Our heavy-duty tipper truck is specially designed for efficient bulk material transportation in construction, mining, quarry and infrastructure projects.
Equipped with a high-power 430hp engine and 12-speed manual transmission, it delivers strong power and stable performance, suitable for heavy-load and long-distance operations.
The tipper body is made of high-strength wear-resistant steel, with a maximum loading capacity of 40 tons and a maximum dumping angle of 47 degrees, ensuring fast and efficient unloading.
Adopting imported Hyva hydraulic lifting system, reinforced 6×4 chassis and 12.00R20 heavy-duty tires, it features high durability, strong bearing capacity and excellent adaptability to harsh working conditions.
The cab is equipped with air conditioning and air suspension seat, providing a comfortable operating environment for drivers during long-hour work.
With Euro 5 emission standard, it complies with global environmental regulations, making it an ideal choice for customers in Africa, the Middle East and other global markets.
Tipper Truck / Dump Truck
Main Features
1. High Loading Capacity: Maximum rated loading capacity of 40 tons, meeting heavy-load transportation needs in various projects.
2. Powerful Performance: Equipped with 430hp high-power engine and 12-speed manual transmission, ensuring strong power output and stable operation even under full load.
3. Durable Tipper Body: Made of high-strength wear-resistant steel, effectively resisting impact and abrasion, with long service life.
4. Efficient Unloading: Adopting imported Hyva hydraulic lifting system, maximum dumping angle of 47 degrees, realizing fast and stable unloading to improve work efficiency.
5. Strong Adaptability: Reinforced 6×4 chassis and 12.00R20 heavy-duty tires, suitable for harsh working conditions such as construction sites and mines.
6. Comfortable Operation: Cab with air conditioning and air suspension seat, reducing driver fatigue during long-hour work.
7. Environmental Compliance: Euro 5 emission standard, complying with global environmental regulations, applicable to global markets.
8. High Reliability: Strict quality inspection before delivery, low failure rate, ensuring long-term stable operation and reducing maintenance costs.
Tipper Truck / Dump Truck
Main Specifications
1. Maximum Rated Loading Capacity: 40 tons
2. Engine Power: 430 horsepower
3. Drive Type: 6×4
4. Transmission: 12-speed manual
5. Tipper Body Material: High-strength wear-resistant steel
6. Maximum Dumping Angle: 47 degrees
7. Hydraulic Lifting System: Imported Hyva cylinder
8. Tire Specification: 12.00R20
9. Emission Standard: Euro 5
10. Driving Speed: 80 kilometers per hour
11. Overall Dimensions: 8600×2500×3400 millimeters
12. Gross Weight: 49 tons
Application Scenarios
1. Construction Projects: Suitable for transporting sand, gravel, concrete and construction waste at construction sites.
2. Mining Operations: Ideal for bulk transportation of ore, coal and rock in open-pit mines and quarries.
3. Infrastructure Construction: Applicable to material transportation for road, railway and water conservancy projects.
4. Municipal Engineering: Used for urban waste removal, road maintenance and public works material transportation.
5. Quarry Operations: Suitable for transporting aggregate, stone and other bulk materials in quarries.
