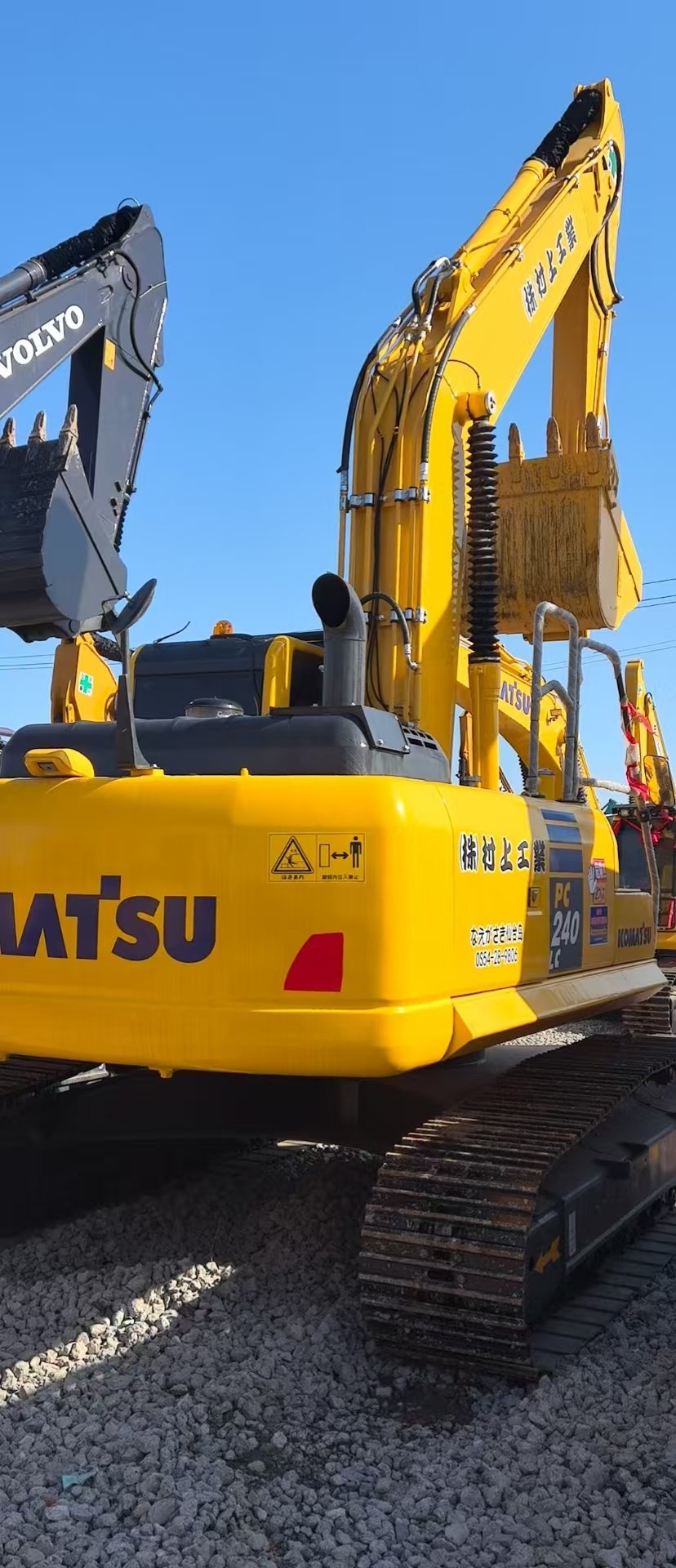

Komatsu PC240 Excavator

Product Parameters -Komatsu PC240 Excavator

Product Introduction (English Version)

Komatsu PC240 Excavator: Reliable Power for Versatile Construction Needs

The Komatsu PC240 Excavator stands out as a versatile and reliable choice in the mid-sized excavator segment, tailored for various construction tasks such as earthmoving, excavation, loading, and infrastructure construction. With its advanced technology, excellent performance parameters, and user-friendly design, it delivers efficient operation while ensuring durability and low operating costs, making it a preferred equipment for construction companies and project managers.

Basic Performance Parameters

• Model: Komatsu PC240LC-11 (representative model of the PC240 series)

• Operating Weight: Approximately 24,500 kg, providing stable operation even in complex working conditions

• Engine: Equipped with a Komatsu SAA6D107E-3 engine, complying with EU Stage IV and U.S. EPA Tier 4 Final emission standards. It delivers a rated power of 153 kW (207 HP) at 2,000 rpm, ensuring strong power output while reducing fuel consumption and exhaust emissions.

• Fuel Tank Capacity: 400 L, enabling long working hours without frequent refueling, improving work efficiency.

• Hydraulic System: Adopts Komatsu’s advanced hydraulic control system with a main pump flow rate of approximately 2×230 L/min. The system provides precise control and smooth operation, allowing the excavator to handle heavy loads with ease.

Working Performance Parameters

• Bucket Capacity: Standard bucket capacity is 1.2 m³ (optional buckets range from 0.8 m³ to 1.5 m³ to adapt to different materials and working conditions)

• Maximum Digging Depth: 6,600 mm, meeting the depth requirements of most excavation tasks, such as foundation digging and trench excavation

• Maximum Digging Radius: 10,200 mm, ensuring a wide working range, reducing the number of machine movements and improving operation efficiency

• Maximum Lifting Capacity (at Ground Level): Approximately 8,500 kg, enabling safe lifting and handling of heavy materials

• Cycle Time: The combined cycle time of digging, lifting, rotating, and unloading is about 12 seconds, which is shorter than that of many competitors, significantly increasing the amount of work per unit time

Overall Dimension Parameters

• Overall Length (with Standard Bucket): 9,800 mm

• Overall Width: 2,990 mm

• Overall Height (to Top of Cab): 2,970 mm

• Track Width: 600 mm (standard), optional 700 mm for better stability on soft ground

• Minimum Ground Clearance: 450 mm, preventing the undercarriage from being damaged by obstacles during driving

• Minimum Turning Radius (Without Bucket): 3,500 mm, ensuring flexible movement in narrow construction sites

Undercarriage and Driving Parameters

• Undercarriage Type: Long crawler (LC) design, with a track length of 4,170 mm, increasing the contact area with the ground and improving stability and traction

• Travel Speed: Maximum travel speed of 5.5 km/h (low speed) and 3.2 km/h (high speed), allowing the excavator to move quickly between work areas

• Gradeability: 70% (35°), enabling it to climb steep slopes easily, adapting to mountainous and hilly construction environments

Comfort and Safety Configuration

• Cab: Equipped with a spacious and quiet cab, with a noise level of only 72 dB(A) inside. It is equipped with an adjustable suspension seat, air conditioning, and a multi-functional display screen, providing a comfortable working environment for the operator and reducing fatigue during long-term operation.

• Safety Features: Standard with rearview cameras and monitoring systems, ensuring the operator has a clear view of the surrounding environment. The cab is designed with ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) to protect the operator’s safety in case of accidents.

• Maintenance: The engine hood and side covers can be easily opened, facilitating daily inspection and maintenance. Komatsu’s remote monitoring system (Komtrax) allows real-time monitoring of the equipment’s operating status, fuel consumption, and maintenance reminders, reducing downtime.

With its excellent performance parameters, reliable quality, and humanized design, the Komatsu PC240 Excavator can effectively meet the diverse needs of modern construction projects. Whether it is large-scale infrastructure construction or small and medium-sized earthwork projects, it can provide efficient, economical, and safe operation support, helping users improve project progress and economic benefits.
