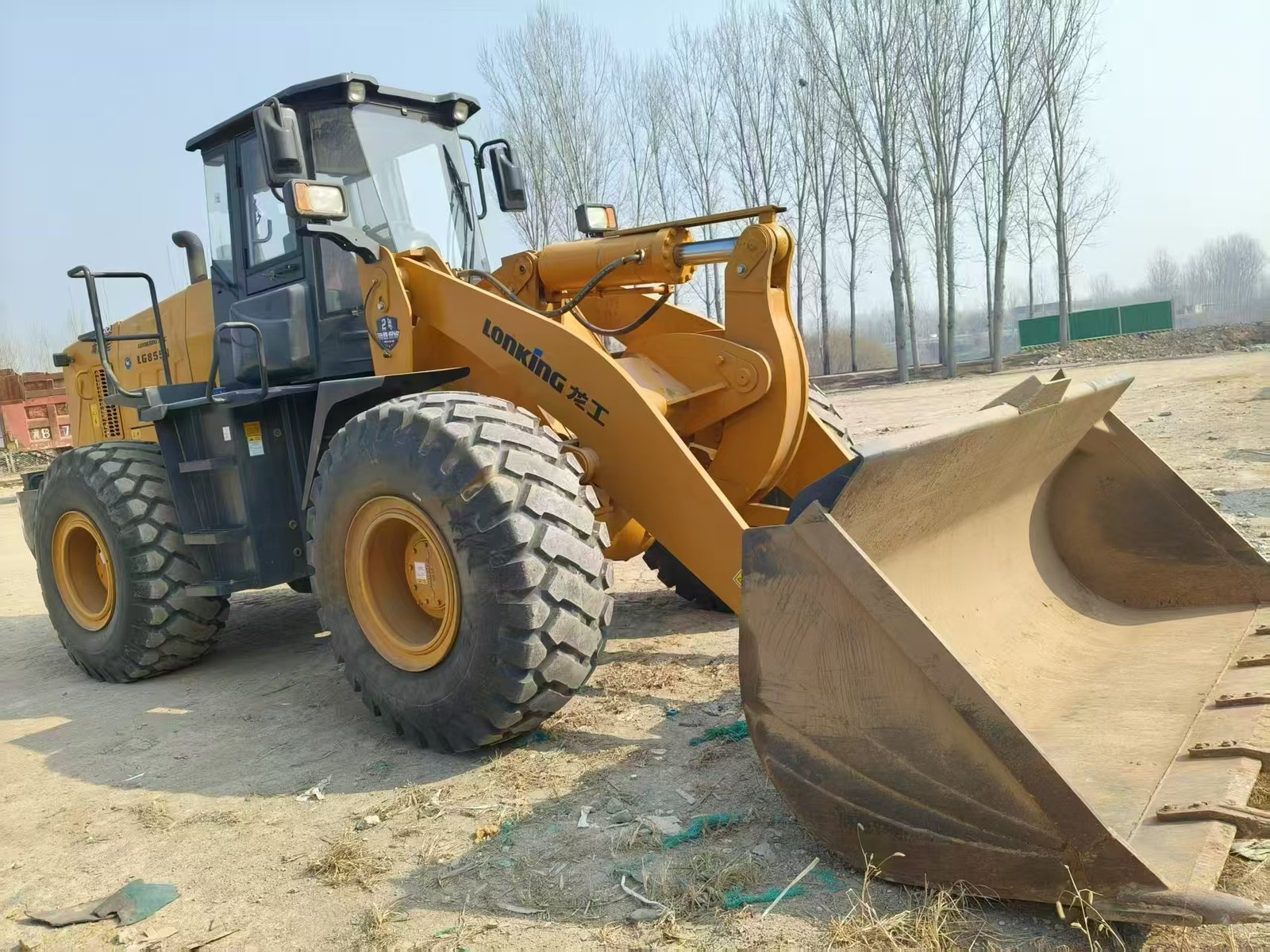

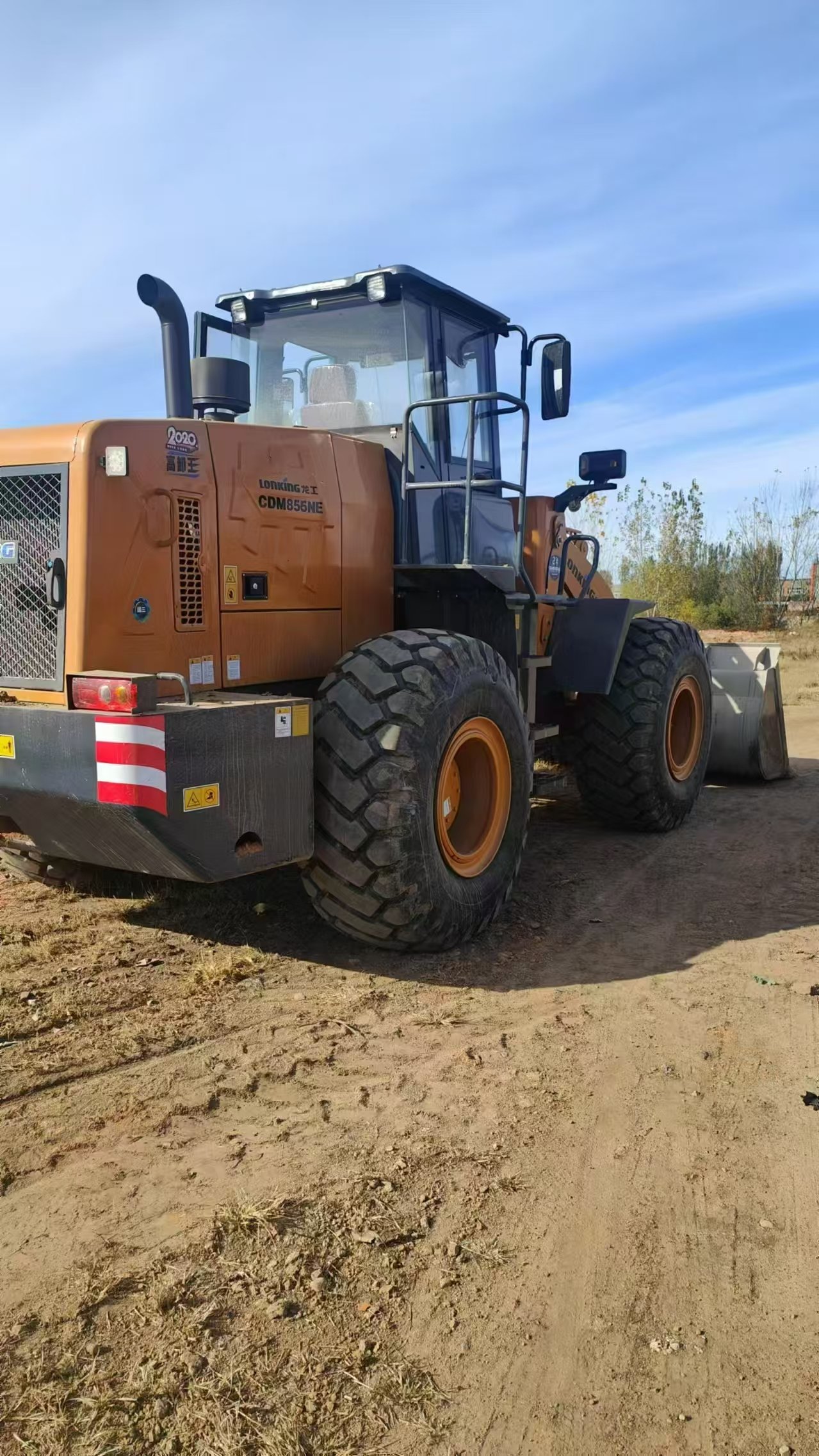

Lonking 855 Loader

Product Parameters – Lonking 855 Loader

Product Introduction (English Version)

Lonking 855 Loader: Outstanding Performance for Efficient Operations

In various engineering construction and material handling scenarios, a loader with strong performance, stability and reliability is crucial. The Lonking 855 Loader has become a trusted choice for many users due to its excellent parameter configuration and outstanding performance.

Basic Performance Parameters

The equipment model of Lonking 855 Loader is LG855H, with a bucket capacity of 2.8 cubic meters (ranging from 2.5 to 4.0 cubic meters), which can meet the loading needs of different materials and workloads. The rated load capacity is 5000 kg (about 5 to 6 tons), which can easily handle various medium and large – scale material handling tasks. The rated power and speed are 170/2200 kW/rpm, matched with a high – efficiency and reliable Weichai National IV engine. It provides strong power output, laying a solid foundation for the stable operation of the loader under various complex working conditions. Whether in mines, docks or construction sites, it can easily cope and complete operations efficiently. The overall operating weight is between 16500 and 16800 kg (±300 kg). The moderate weight ensures the stability of the equipment during operation without affecting its flexibility and maneuverability.

Operation Performance Parameters

In actual operations, the Lonking 855 Loader also performs excellently. The maximum digging force (breakout force) is ≥170 kN (another statement is 175 ± 5 kN), which can easily dig and load hard materials; the maximum traction force is 160 ± 3 kN (another statement is 160 ± 5 kN), ensuring that the loader can move forward smoothly and drag heavy objects under various ground conditions. The maximum unloading height is 3080 mm (±30 mm), and the unloading distance is 1270 mm, which can meet the requirements for unloading height and distance in most loading scenarios, facilitating the accurate unloading of materials to the designated position and improving work efficiency.

Overall Dimension Parameters

In terms of overall dimensions, the wheelbase of the Lonking 855 Loader is 3230 mm, and the track width is 2240 mm. This design makes the loader more stable during driving and operation. The minimum ground clearance is 408 mm, which can effectively avoid damage to the bottom of the equipment when driving on uneven roads. The overall length is 8080 mm, the overall width is 2835 mm, and the overall height is 3400 mm. The reasonable size design not only ensures the rationality of the internal structure layout of the equipment but also takes into account the passability of the equipment in different sites. The minimum turning radius of the outer wheel centerline is 6240 mm, and the turning radius – outer side of the bucket is 7229 mm. It has flexible turning, can operate in narrow spaces, and adapt to various complex construction environments.

Transmission and Driving Parameters

In terms of transmission and driving, the engine model of the Lonking 855 Loader is WP10HG230E476, with the emission standard meeting National IV, which complies with current environmental protection requirements and reduces environmental pollution. In the transmission system, the torque converter type is single – stage double – turbine four – element, the gearbox type is planetary hydraulic shifting, with two forward gears and one reverse gear. The main drive adopts spiral bevel gear primary reduction, and the wheel – side reduction type is straight – tooth cylindrical gear planetary transmission. This advanced transmission system design enables stable power transmission and smooth shifting, which can adapt to the operation needs under different working conditions. The tire specification is 23.5 – 25, with strong grip and good wear resistance, which can drive stably under various road conditions. The driving speed is 13 – 39 km/h forward and 16 km/h backward. It can move forward and backward freely, efficiently and flexibly, and can quickly travel between the loading point and the unloading point to improve work efficiency.

Other Parameters

The lifting time of the Lonking 855 Loader is only 4.8 seconds (working device action time), and the combined time of three actions is 9.3 seconds (working device action time). The working device acts quickly, which greatly increases the workload per unit time. The braking system adopts service brake air – pushed oil caliper disc – type four – wheel brake, and the parking brake is cable – operated caliper disc – type. The braking air pressure is 0.7 – 0.78 MPa. The reliable braking performance can ensure that the equipment stops quickly in emergency situations, ensuring operation safety. The steering system is a full – hydraulic load – sensing steering system with a gear pump, and the steering angle is ±35°, which is light and flexible, allowing the operator to easily control the direction of the equipment. The electrical system has a system voltage of 24 V, a battery capacity of 2 – N120 – L, and a lighting voltage of 24 V, ensuring the normal operation of various electrical components of the equipment. In terms of oil filling amount, the engine oil is 20 liters and the gearbox oil is 48 liters. The reasonable oil filling amount ensures good lubrication and normal operation of various components of the equipment. In addition, the Lonking 855 Loader is also equipped with a National IV cab, providing a comfortable working environment for operators and reducing fatigue during long – time operations.

With its comprehensive and excellent parameter configuration, the Lonking 855 Loader performs outstandingly in many aspects such as power, operation capacity, stability, flexibility and comfort. It is an ideal choice for various engineering construction and material handling operations. Whether it is a large – scale engineering project or the daily material handling of a small enterprise, the Lonking 855 Loader can create higher value for you and help your business thrive with its outstanding performance.
