Shantui bulldozer

Shantui SD32 Bulldozer Technical Specifications

Item	Specification
Operating Weight	38.5 t
Engine Model	Cummins QSNT-C345
Rated Power	257 kW (345 hp) / 1900 rpm
Overall Dimensions (L×W×H)	8545 × 3955 × 3624 mm
Track Shoe Width	560 mm
Ground Pressure	92.7 kPa
Forward Speed	0–11.0 km/h
Reverse Speed	0–13.9 km/h
Gradeability	30°
Fuel Tank Capacity	587 L
Blade Capacity	Approx. 11.4 m³ (Semi-U blade)
Max. Digging Depth	589 mm
Max. Ripper Depth	Single shank: 1376 mm / Three shanks: 871 mm

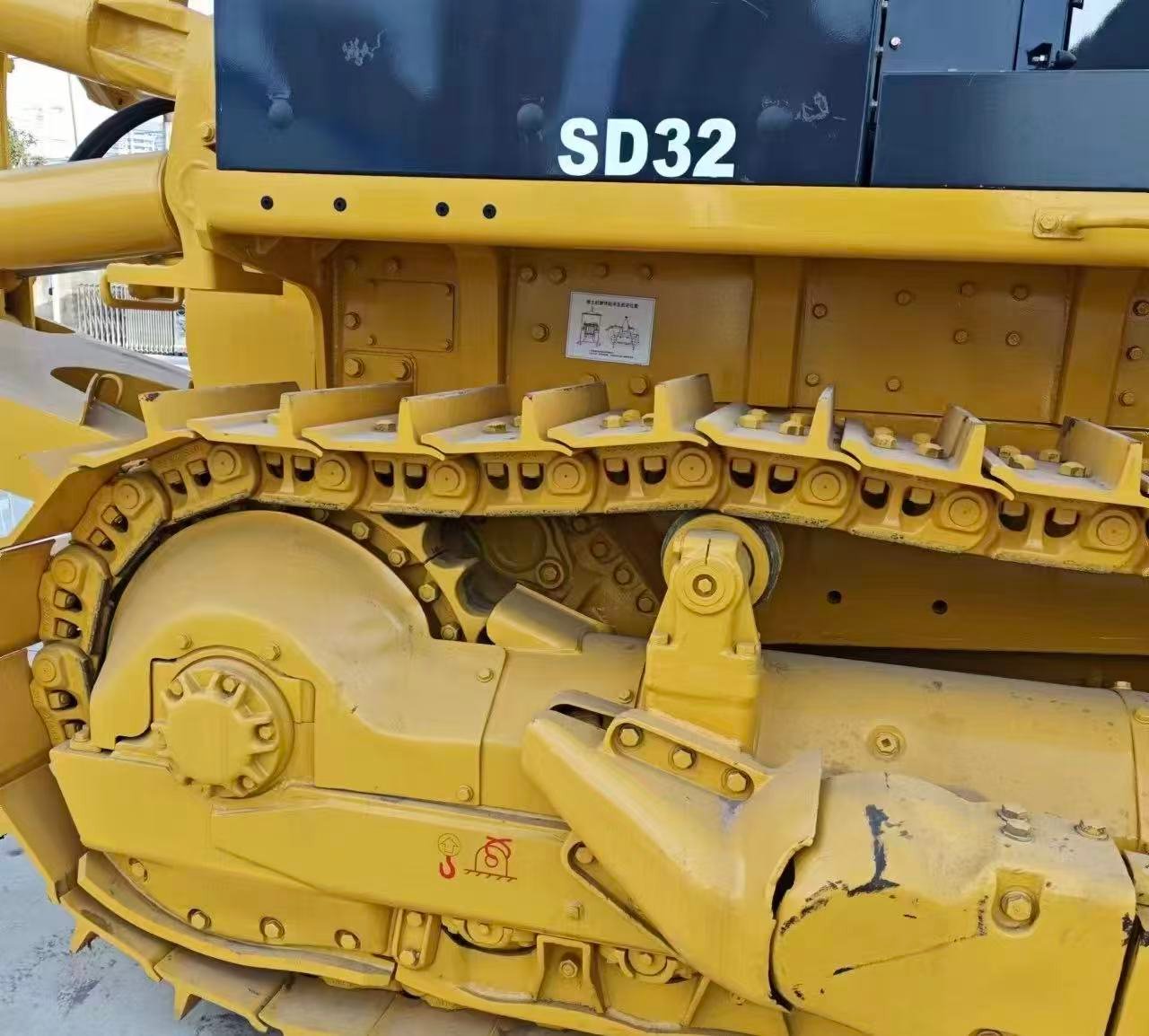

antui SD32 Bulldozer – Product Description

Description

Shantui SD32 is a 320-horsepower heavy-duty crawler bulldozer, serving as the flagship model of Shantui’s heavy-duty series, specially designed for high-intensity and harsh working conditions. Equipped with a high-performance power system and reinforced chassis structure, its core components have undergone strict testing and optimization, featuring excellent power output, stable operating performance and super strong environmental adaptability. It can easily meet various heavy-duty operation needs, balancing operation efficiency and equipment durability, and is the preferred model in the field of heavy-duty engineering.

Key Features

Powerful Power: Equipped with Cummins QSNT-C345 engine, rated power 257kW, meeting Euro IIIA emissions, with long endurance.
Robust & Durable: Boat-type frame + cast-welded rear axle, planetary final drive, impact-resistant and low wear.
Easy Operation: Hydrodynamic drive + power shift, single-lever joystick control, precise and effortless.
Safe & Reliable: Equipped with a ROPS/FOPS certified panoramic cab to ensure operational safety.
High Operation Efficiency: The optimized hydraulic system has sensitive response, coherent bulldozing and ripper actions, outstanding operation efficiency, and is suitable for various high-intensity heavy-duty operation scenarios.
Strong Adaptability: The track ground pressure is optimized, which can drive stably under complex road conditions, meeting the use needs of various harsh operation environments such as mountains and mines.
Energy Saving and Consumption Reduction: The engine adopts precise electronic control adjustment technology to optimize fuel combustion efficiency, effectively reduce fuel consumption, and balance power output with energy conservation and environmental protection.

Applications

Suitable for heavy-duty scenarios such as mine overburden removal, large-scale earthmoving, road construction, water conservancy dams, and forest land reclamation; customized versions for rock, coal, etc. are available.
