Product Parameters – XCMG 200-ton crane
| Parameter |
Specification |
| Engine Model |
Weichai WP12.430E50 |
| Engine Power |
390kw |
| Operating Weight |
90.5tons |
| Bucket Capacity |
200tons |
| |
|
| Max Reach |
61.5meters |
| Max Dump Height |
82.1meters |
| Hydraulic Flow |
80L/meters |
| Travel Speed |
80km/h |
| Fuel Tank Capacity |
700L/min |
| Arm Length |
118meters |
Product Introduction (English Version)

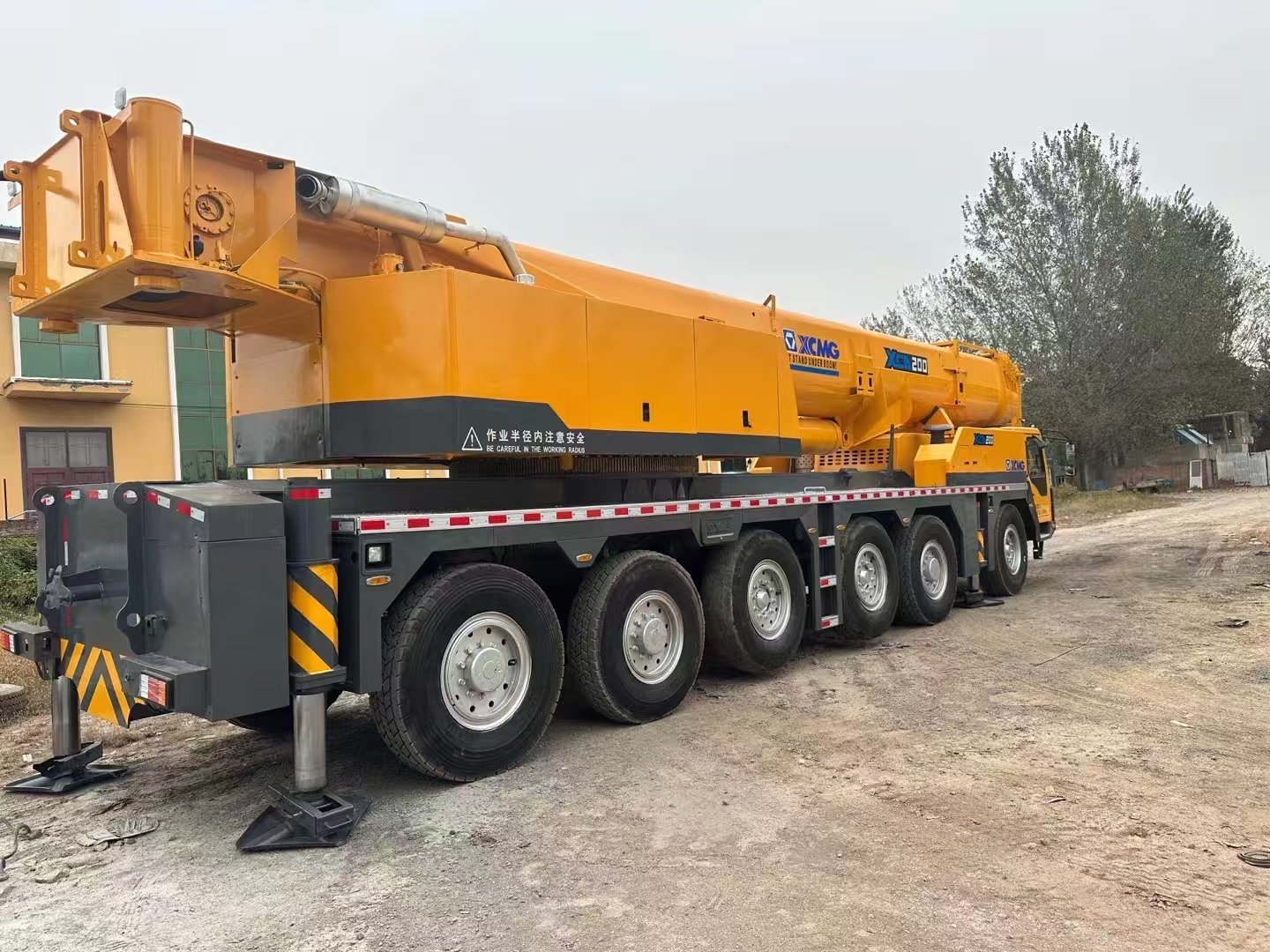

XCMG 200-Ton Crane Product Description
• QAY200: The total operating weight of the machine is 71,000 kg, and the maximum rated total lifting capacity is 200 tons; the total length of the machine is 16,130 mm, the total width is 3,000 mm, and the total height is 4,000 mm; the driving speed is 71 km/h, the minimum turning diameter is 24 m, and the maximum climbing gradient is 48%; the lifting height of the basic boom is 14.5 m, the main boom is 61.5 m, and the main boom + jib is 82.1 m; the length of the lifting arm: the basic boom is 13.8 m, the main boom is 61 m, and the main boom + jib is 81 m; the maximum speed of the main winch single rope is 120 m/min, and the maximum speed of the auxiliary winch single rope is 110 m/min.
• XCA200G8-1: 90 m main boom + 34.5 m jib, with the longest arm length of 118.5 m and the maximum working range of 84 m; the upper engine is Weichai 221 kW, and the chassis engine is Weichai/Yuchai 338/316 kW; the comprehensive performance of load telescoping is not less than 40% of the rated load.
• XCA200L8: The eight-section main boom is fully extended to 88 m, with a 20 m jib, and an optional 36 m jib can be installed, with the longest arm length reaching 118 m; the maximum lifting torque of the basic boom is 672 t·m, and the maximum lifting torque of the longest main boom is 253 t·m; the maximum climbing gradient is 65%, and the minimum turning diameter is 18.5 m.
