| Item | XCMG 50 - ton loader |
|---|---|
| Engine Model | lsuzu 4JJ1-TCC |
| Engine Power | 92kW(123hp)@2000rpm |
| Operating Weight | 13500kg |
| Bucket Capacity | 0.5-0.8 m³ |
| Max Digging Depth | 7340mm |
| Max Reach | 8200mm |
| Max Dumping Height | 7400mm |
| Arm Length | 3100mm |
| Overall Length | 7230mm |
| Overall Width | 2950mm |
| Overall Height | 3300mm |
| Travel Speed | 38km/h |
| Hydraulic System Pressure | 16MPa |
| Fuel Tank Capacity | 230L |
| Hydraulic Tank Capacity | 160L |
| Swing Speed | 12r/min |
| Bucket Breakout Force | 160kn |
| Arm Breakout Force | 110kn |
| Cab Type | Closed cab with air conditioning |
| Track Type | Tire type |

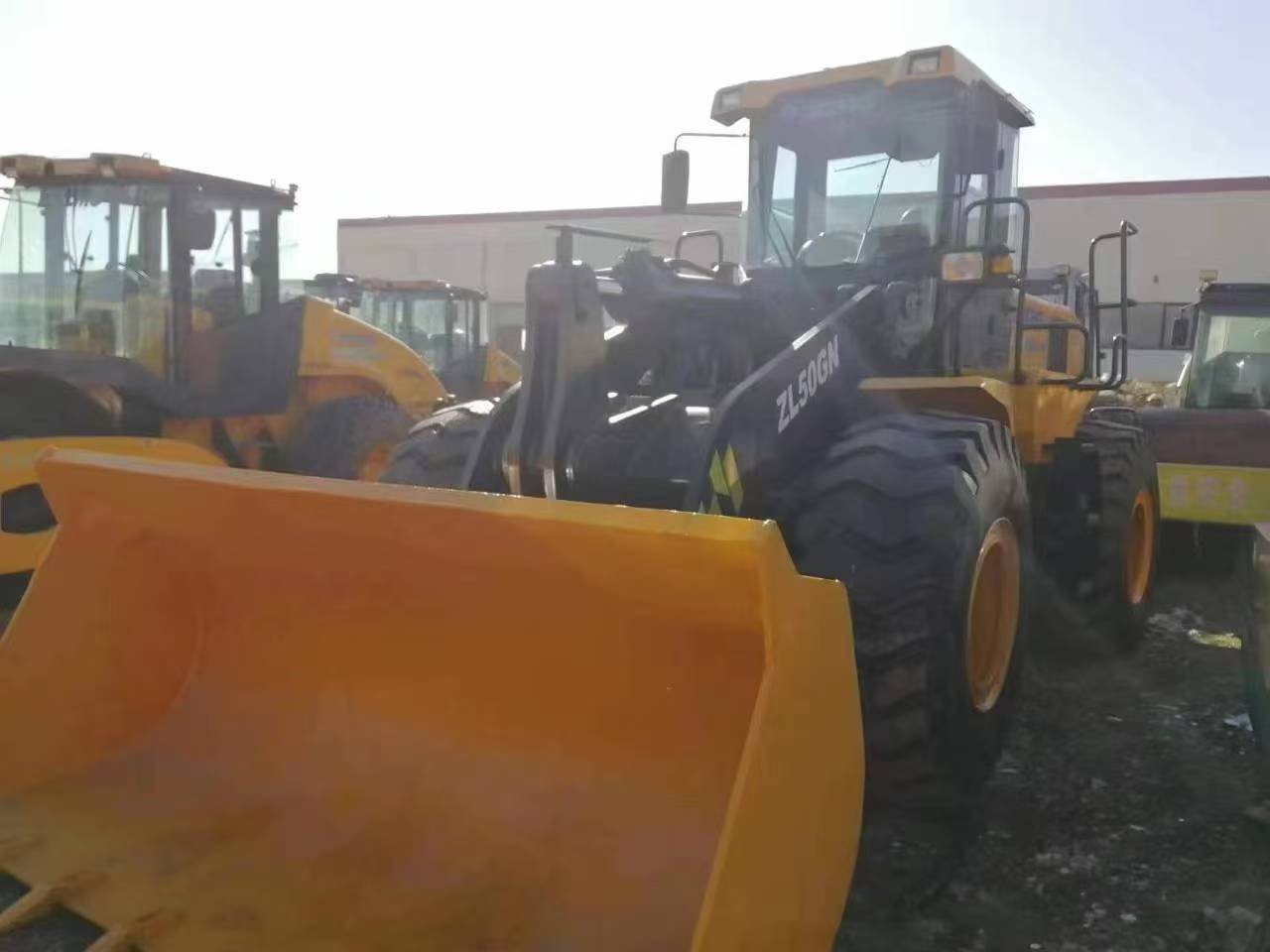

XCMG 50 – ton loader
Description
-
Item Specification Model ZL50GV Engine Model Weichai WP10G220E34 Engine Power 162kW(220hp) Operating Weight Approximately 16000kg Bucket Capacity 3m³ Max Digging Force 160kN Max Traction Force 150N Max Travel Speed 38km/h Dumping Height 3180mm Dumping Distance 1260mm Wheelbase 3200mm Tread 2250mm Fuel Tank Capacity 230L Hydraulic Tank Capacity 160L
XCMG 50 – ton loaderUsed Excavator Overview
XCMG 50 – ton Loader Product Description
The XCMG 50 – ton loader, represented by models like ZL50GV, is a high – performance construction machinery product designed to meet a wide range of heavy – duty material handling tasks.
Powerful Engine

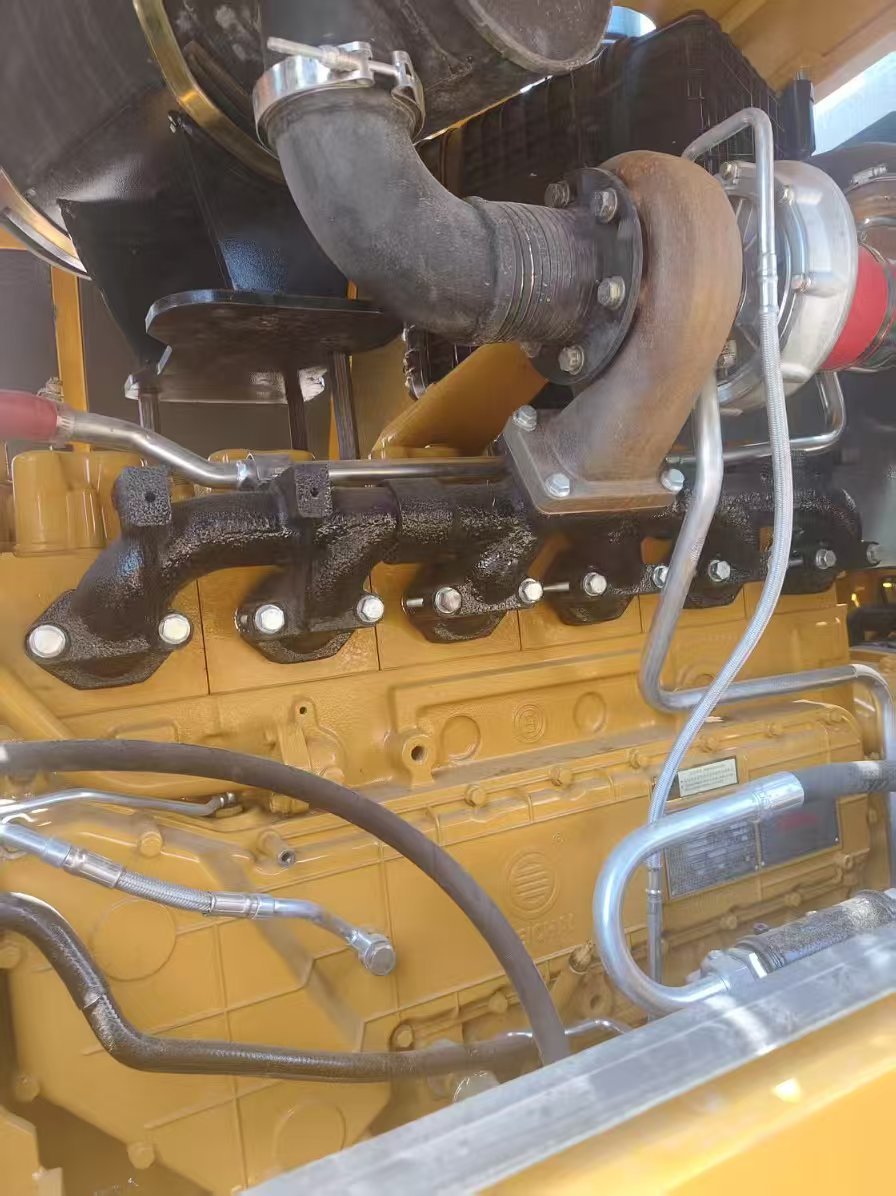

Equipped with a Weichai WP10G220E341 engine, it delivers a robust power output of 162kW (220hp). This engine not only ensures high – efficiency operation but also provides excellent torque performance, enabling the loader to work stably under various harsh working conditions, whether it’s in large – scale mining operations or busy construction sites.
Ideal Operating Weight and Bucket Capacity
With an operating weight of approximately 16,000kg, the loader achieves a good balance between stability and mobility. Its 3m³ bucket capacity allows it to handle a large amount of materials in one go, significantly improving work efficiency. Whether it’s loading gravel, sand, or coal, the loader can complete the task quickly and accurately.
Strong Working Capabilities
The loader boasts an impressive max digging force of 160kN and a max traction force of 150kN. These capabilities endow it with strong penetration and pulling power, making it easy to break up and handle tough materials. The max travel speed of 38km/h ensures efficient movement between different work areas, reducing non – productive time.
Excellent Dumping Performance
The dumping height of 3180mm and dumping distance of 1260mm make it convenient to load materials into trucks or other high – positioned containers. The rational design of the dumping mechanism ensures smooth operation and high reliability.
Human – centered Design
In terms of overall design, with a wheelbase of 3200mm and a tread of 2250mm, the loader has good stability during operation. The operator’s cabin is designed to provide a comfortable working environment, equipped with advanced control systems and ergonomic seats, reducing operator fatigue and improving work accuracy.
Adequate Fuel and Hydraulic Systems
The 230L fuel tank capacity ensures long – lasting operation without frequent refueling, which is beneficial for continuous work in remote or large – scale construction projects. The 160L hydraulic tank capacity provides stable hydraulic power supply, ensuring the smooth operation of all hydraulic components.
Overall, the XCMG 50 – ton loader is a reliable, efficient, and versatile construction machinery product, widely recognized and used in construction, mining, and other industries.
